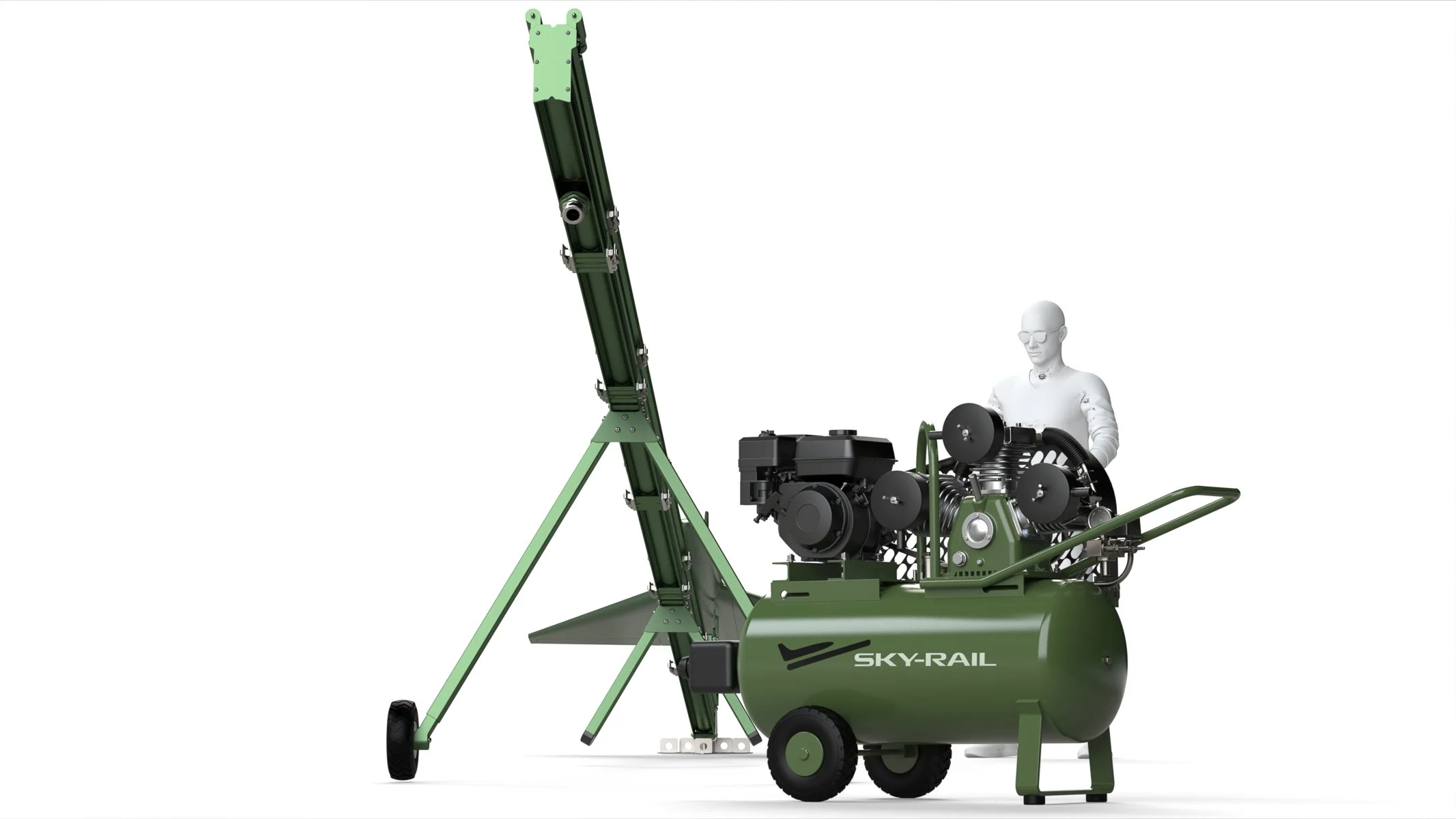

UAV pneumatic catapult launcher

Features

• Two-person build.

• Interim legs to support the weight of the track when erecting.

• Fast recharge 10 minutes for maximum TOW (this is the same time as it takes to start the engine and run checks)

• It can be disconnected from the ground anchor and repositioned to face into the wind, all without lifting hefty weights, using only two people.

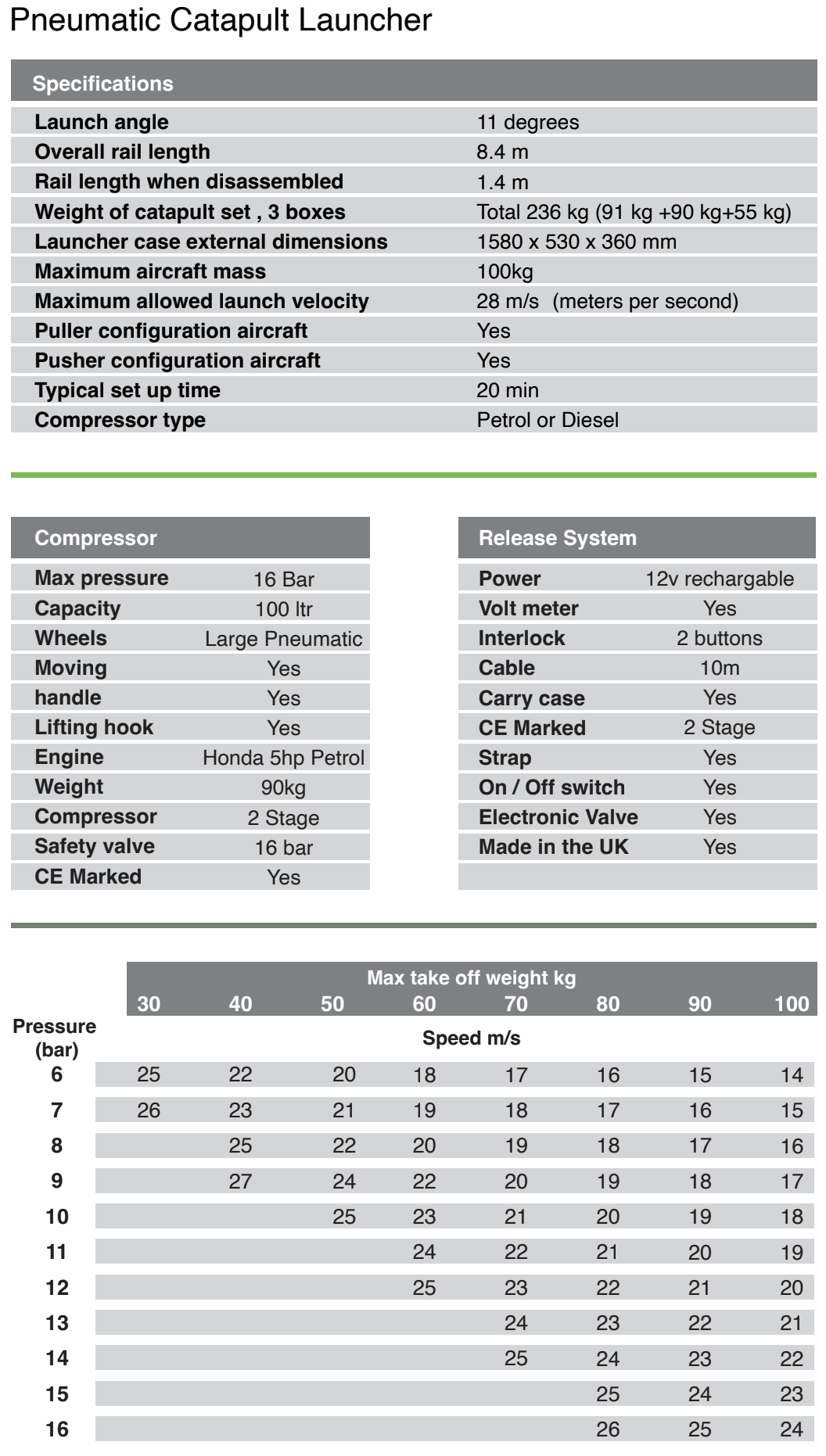

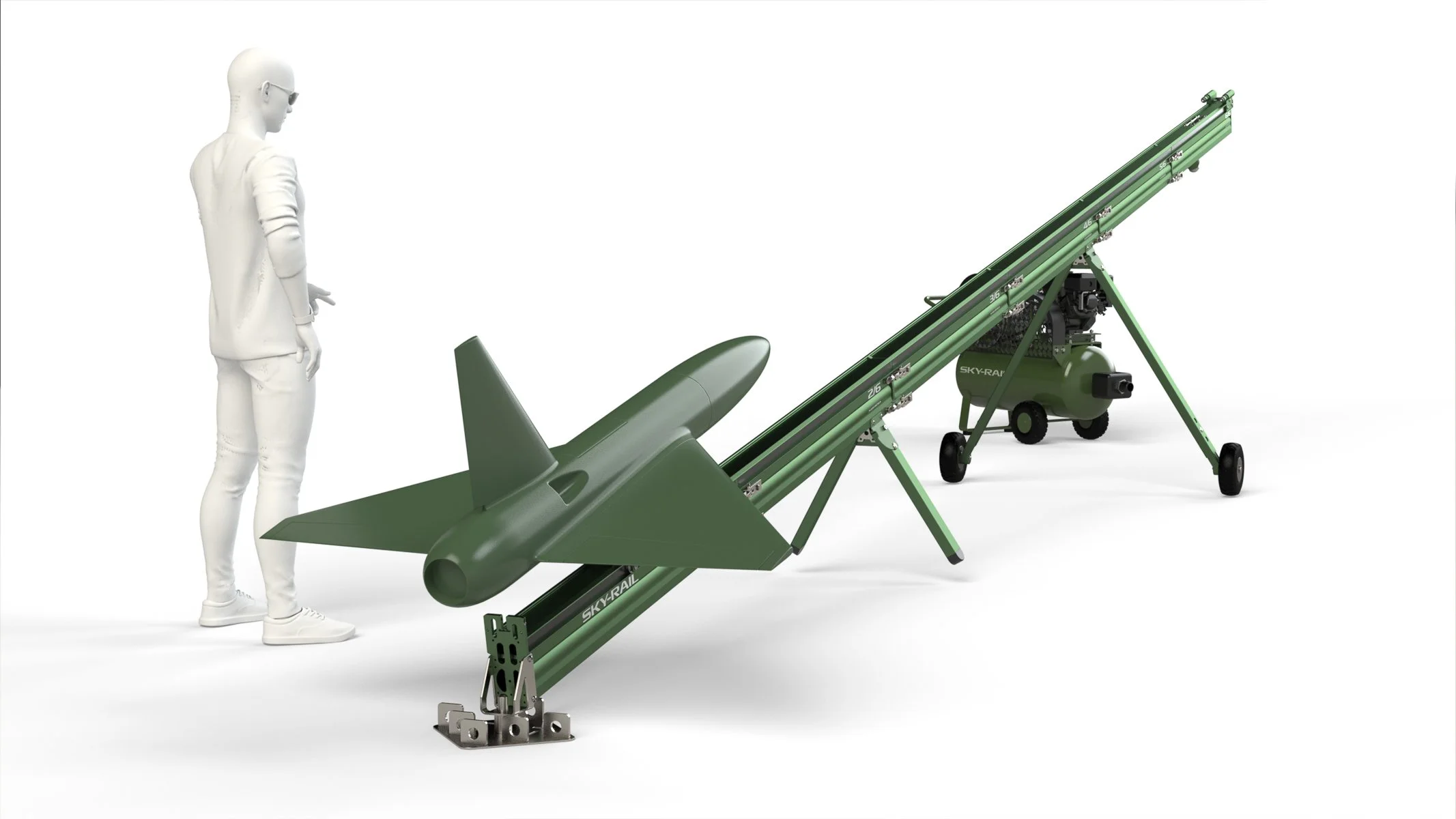

The Sky Rail pneumatic catapult launcher has been developed to accelerate UAV’s with a MTOW of up to 100 kg and launch them at speeds of up to 28 m/s.

The launcher is lightweight and can be assembled quickly. The system is packed in rugged transport cases.
